3x-ui使用多个IP不同出入口 - 多端口配置方案

2025-08-05 09:05 作者:icpserver 阅读量:44

如果您按照本教程操作,请勿随意修改任何内容,包括 备注 等配置中的任何部分。您只需根据实际情况修改对应的 IP 地址 即可。

以下以 Shadowsocks 为例,每个端口对应不同的IP出口,其他协议或多用户区分可根据此思路扩展。

示例:端口与IP对应关系

38901 -> 192.168.1.11
38902 -> 192.168.1.12
38903 -> 192.168.1.13
38904 -> 192.168.1.14
38905 -> 192.168.1.15

安装 3x-ui

  1. 请参考以下教程安装 3x-ui:
    3x-ui 安装教程

  2. 安装完成后,登录管理面板,按照以下步骤进行配置。


配置步骤

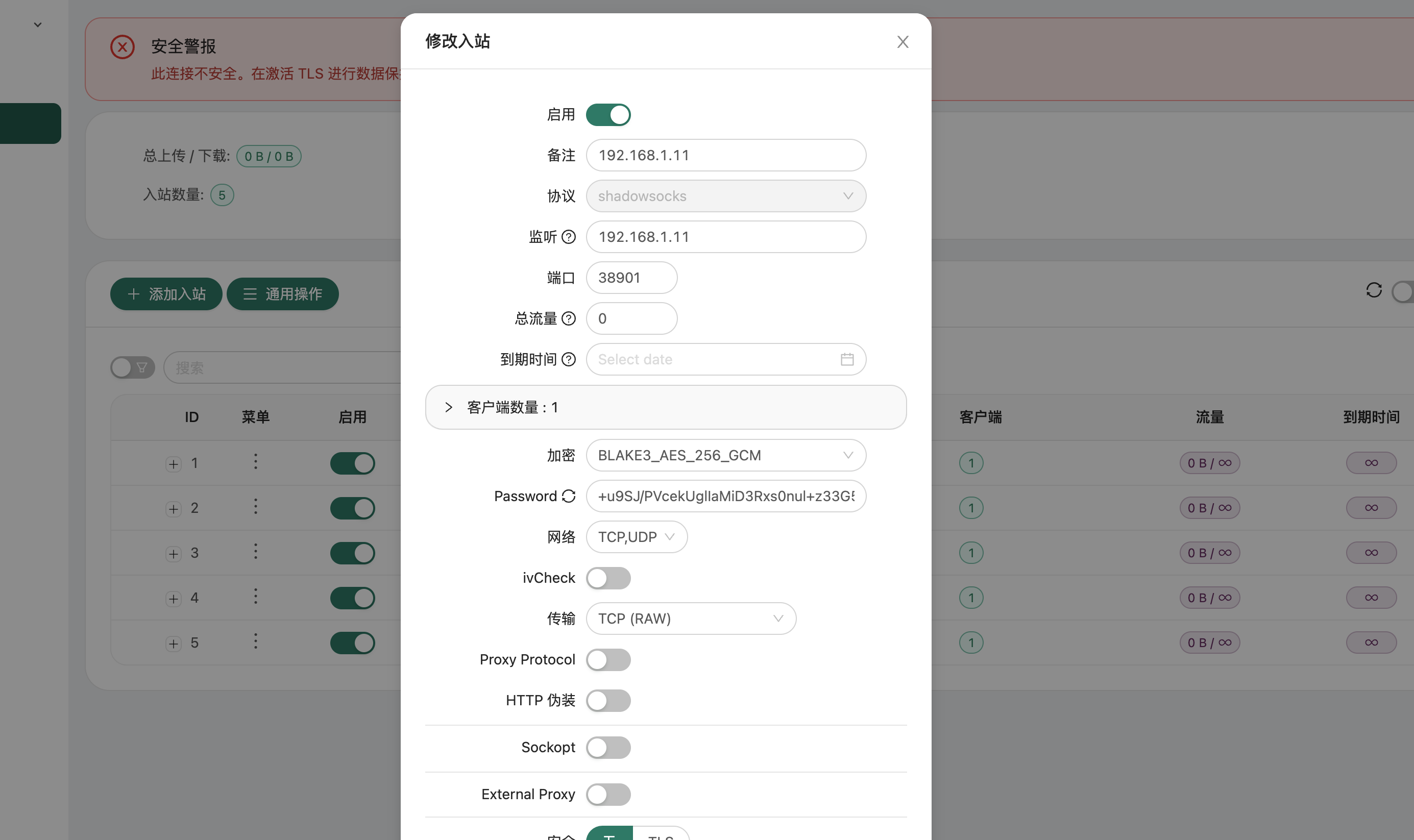

1. 创建节点

在 3x-ui 中为每个IP创建对应的节点。节点的IP需与实际出口IP对应,确保配置准确。如不清楚如何操作,请谨慎修改,以免配置失败。blogs/content/9Cw7TPCH52KIZk08BuGH5FSiahsD5hgix20Iu8DO.png

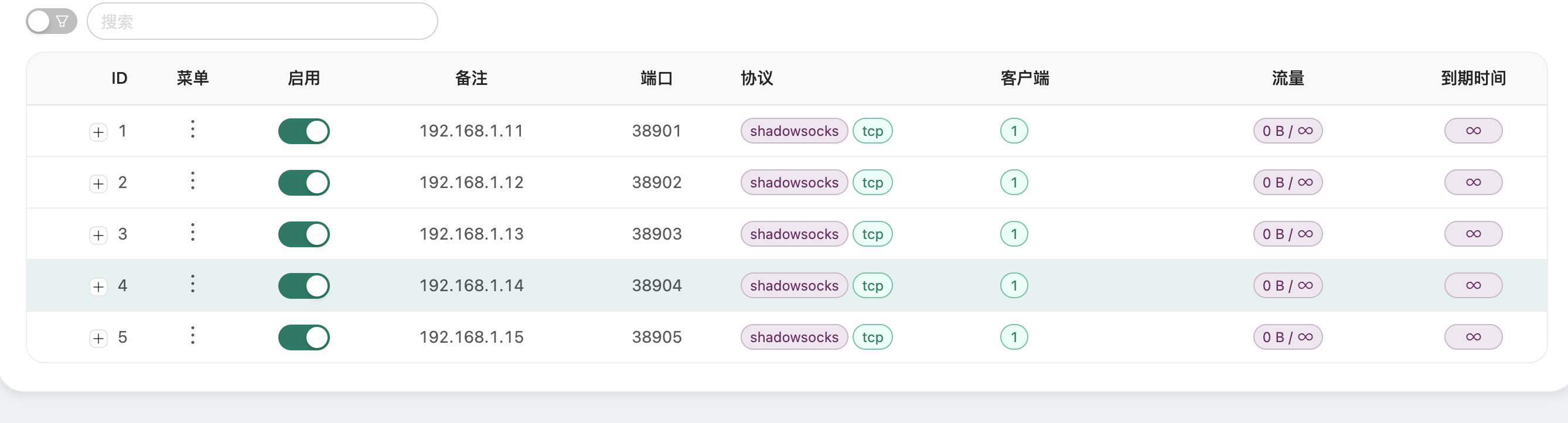

整体配置图

blogs/content/wMx1pp9Ra4kLZkVryfEQxlF97cbWl2pDKRpy2YsX.png

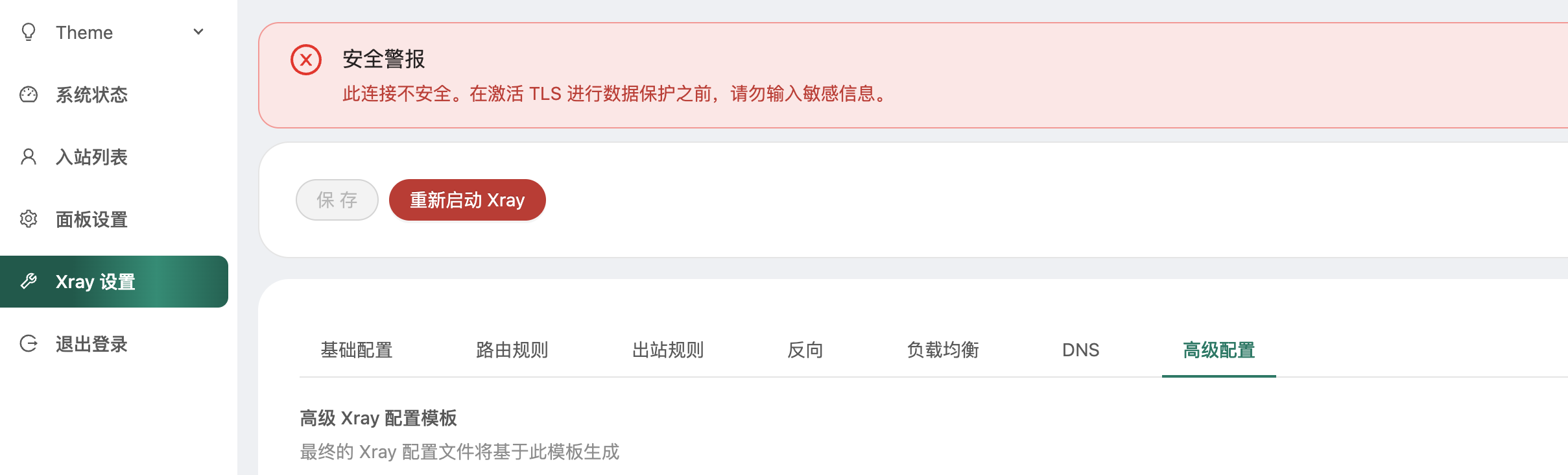

2. 配置 Xray 高级设置

blogs/content/DvhWwendCPHENcoaxfHd6VUL1DN7WPbyAKNmMuDm.png进入 Xray 设置 → 高级设置,找到并编辑以下内容:


出站规则配置

[
  {
    "tag": "ip1",
    "sendThrough": "192.168.1.11",
    "protocol": "freedom",
    "settings": {}
  },
  {
    "tag": "ip2",
    "sendThrough": "192.168.1.12",
    "protocol": "freedom",
    "settings": {}
  },
  {
    "tag": "ip3",
    "sendThrough": "192.168.1.13",
    "protocol": "freedom",
    "settings": {}
  },
  {
    "tag": "ip4",
    "sendThrough": "192.168.1.14",
    "protocol": "freedom",
    "settings": {}
  },
  {
    "tag": "ip5",
    "sendThrough": "192.168.1.15",
    "protocol": "freedom",
    "settings": {}
  },
  {
    "tag": "direct",
    "protocol": "freedom",
    "settings": {
      "domainStrategy": "UseIP",
      "redirect": "",
      "noises": []
    }
  },
  {
    "tag": "blocked",
    "protocol": "blackhole",
    "settings": {}
  }
]

路由规则配置

[
  {
    "inboundTag": [
      "inbound-192.168.1.11:38901"
    ],
    "outboundTag": "ip1",
    "type": "field"
  },
  {
    "inboundTag": [
      "inbound-192.168.1.12:38902"
    ],
    "outboundTag": "ip2",
    "type": "field"
  },
  {
    "inboundTag": [
      "inbound-192.168.1.13:38903"
    ],
    "outboundTag": "ip3",
    "type": "field"
  },
  {
    "inboundTag": [
      "inbound-192.168.1.14:38904"
    ],
    "outboundTag": "ip4",
    "type": "field"
  },
  {
    "inboundTag": [
      "inbound-192.168.1.15:38905"
    ],
    "outboundTag": "ip5",
    "type": "field"
  },
  {
    "type": "field",
    "inboundTag": [
      "api"
    ],
    "outboundTag": "api"
  },
  {
    "type": "field",
    "outboundTag": "blocked",
    "ip": [
      "geoip:private"
    ]
  },
  {
    "type": "field",
    "outboundTag": "blocked",
    "protocol": [
      "bittorrent"
    ]
  }
]

保存所有配置后,重启 Xray 服务。配置完成后,可以进行测试以验证是否符合预期
